Renovations and extensions may be exciting, but they also test the plumbing in a home. When a new bathroom is added, a kitchen is moved, or a living room is enlarged, the water has to be carried to new areas. Plumbing design in these situations requires attention to new fixtures and their function, new drain lines and the slope that will carry waste through, and making sure the whole system remains safe and efficient. Poor planning leads to leaks, low flow, slow draining fixtures, and expensive repair work after the walls and floors are already in place. Understanding how plumbing works during renovation helps people build better homes.
Planning starts with the existing plumbing layout. Most buildings will have hot and cold water supply lines, gravity dependent drain lines, and vent pipes that allow air to circulate. These three parts work together to keep the system flowing properly. Before fixtures can be moved or added, the main lines must be located, how they connect traced, and if they have enough capacity to serve the new space determined. Builders often draw up a plumbing map using inspection openings, access panels, or even small exploratory cuts. Without a good map of the existing plumbing, it is easy to cause a bottleneck or a code violation without realizing it.
Fixtures can often be more difficult to move than they first appear. A bathroom sink or shower needs a drain with the proper slope, a vent connection within a maximum distance, and supply lines that can reach the new location without limiting pressure. A bathroom moved during renovation across a room or into a different corner will often have existing drain lines that do not align with the new location. Extending or rerouting these drain lines will require planning. A slope that is too shallow and a clog results. A slope that is too steep, and solids stay in the fixture while the water races away. The right slope keeps everything flowing.

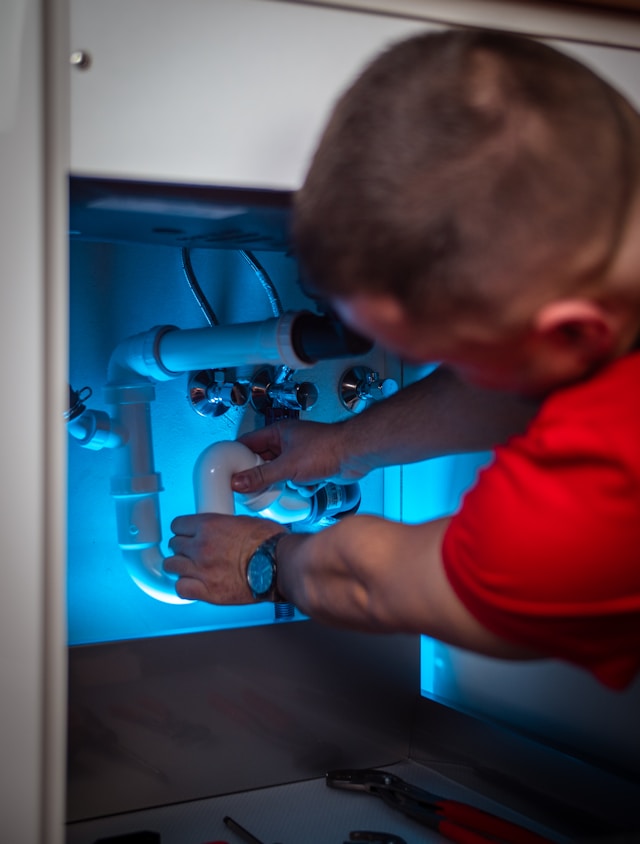

Kitchen relocations have similar constraints. Dishwashers, sinks, and refrigerators with ice makers will require good supply and drain connections. Kitchen drains can also handle grease, food particles, and soap. Proper slope becomes even more important. Kitchen renovations that add islands or peninsulas also require floor drains and more complicated venting than just wall connections. This often requires a vent loop or running new lines through the floor cavities, but not so much that it weakens structural members.
Venting is another part of plumbing design that can be easily forgotten. Every drain requires a vent to prevent siphoning traps and sewer gases from entering the home. Renovations often involve moving fixtures farther away from the main vent stack. If a new distance is greater than the code allows, venting may become inadequate. Inadequate venting can create slow draining, gurgling fixtures, and foul odors. In some cases a new vent line will need to be run to the roof. Other times a revent will tie back to an existing vent. In tight spaces, sometimes an air admittance valve is allowed, but installed in the right location and orientation.
Renovations also involve working around structural walls, joists, and beams. Plumbing must fit around these features without damaging them. Cutting a joist too much for a drain will weaken the floor. Notching studs incorrectly will create a weak wall. There are limits to how much of these members can be removed. This means the designer must consider pipe size, angle, and location early in the process. In some cases the only option is rerouting the pipes to avoid modifying the structural members.
Extensions present their own challenges because they involve adding new spaces that may be at a lower or higher elevation than the existing plumbing. A new bathroom on the lower level of an extension may need a pump to push wastewater to the main sewer line. A new bathroom on the second story of an addition may need larger vent capacity or bigger supply lines to maintain proper pressure. Supply lines extended to far away areas can lose pressure and flow rate if they are not properly upsized. A home with older plumbing may already be close to capacity and the addition of a second bathroom may overload the system. If you’re based in Toronto, it is best to check it by a reliable Mister Plumber.
Water pressure also needs to be re-evaluated in any major renovation. Adding additional bathrooms, two showers instead of one, or other fixtures may decrease pressure if the main supply line or internal piping is too small. The water heater also becomes a factor. If the heater was only serving one bathroom, it may not have enough capacity to service two or three. Tankless systems will have to be sized based on total demand or installed in multiple units to avoid uneven temperatures. Hot water delivery can become an issue when fixtures are far away from the heater. Circulation pumps or instant hot water systems can improve comfort and efficiency.
The drain piping also needs to be evaluated. A single bathroom can usually function with a relatively small drain line, but a second bathroom or laundry room may require upsizing the main drain. If a renovation includes a bathroom in the basement that sits below the sewer line, a sewage ejector pump will also be necessary. These pumps require their own venting, sealed pit chambers, and an accessible location for maintenance.
Renovations often include an opportunity to upgrade older pipes. Old galvanized steel supply lines may be corroded and constricted. Old cast iron drains may have interiors that are rougher and collect debris. Replacing these lines while walls are open saves money in the long run. Newer materials like PEX and PVC offer easier installation and a longer lifespan, but they also must be installed properly. PEX needs support and protection from sunlight. PVC needs proper solvent welding. Old and new material connections also require the right adapters to avoid leaks.
Noise control also needs to be considered. Water moving through walls can be audible, especially in bedrooms or living areas. Insulation around pipes, thicker walled materials, and properly secured lines can reduce noise. Drain lines in particular can become loud echoing tubes if left unsupported. Adding sound deadening insulation can make a significant difference once the home is occupied.
Backflow prevention is another issue that plays a role in safe renovation. Outdoor kitchens, hose bibs, or irrigation systems added during a renovation will require backflow prevention devices to avoid back pressure that could contaminate the supply. These devices must be placed at the right height and in the correct orientation. Renovations that move hoses or other external fixtures should always include a new vacuum breaker or check valve.
Codes govern almost every decision during the design phase. Codes make sure vents are working, slope is correct, piping is the right size, and all materials are installed properly. Ignoring codes usually leads to failed inspections or expensive rework before the project can move forward. A code review during the design stage can catch issues early to avoid redesigns and late changes that delay the entire construction process.
Finishing stages are also important in a renovation. Once pipes are in place but before the walls close, pressure testing and drain testing can confirm all connections are sealed. Mistakes become much more expensive to fix once tile, drywall, or flooring covers the work. Inspection during this stage can prevent leaks that may not show up for months after the renovation is complete.
Designing plumbing for renovations and extensions is more than just connecting pipes. It also means understanding the existing system, planning for future demand, and fitting the technical requirements within structural constraints. When done well, the result is a home that works smoothly, remains safe, and supports the new spaces added without straining the overall system. Good planning and careful execution make a renovation into a long term improvement and not a source of future problems.
